High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit

1개
MOQ
negotiated
가격
High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
유형: 트타 3구륜비트가 거름식 메쉬를 채굴합니다
애플리케이션: 석유, 가스, 우물, 구멍을 뚫는 다이아몬드 유정
색상: 검정색 또는 고객들의 요구조건으로서
형성: 단단한 셰일, 부드러운 석회암, 기타 등등과 같은 매체 형성, 이암에 부드럽습니다.
이점: 고급 품질과 최고의 서비스, 고강도, 오래가고 고효율
강조하다:

6 1/2 inch tungsten carbide drill bit

,

IADC 837 tricone roller bit

,

tricone rock bit with carbide inserts

기본 정보
원래 장소: 중국
브랜드 이름: GLORYTEK
인증: CE,SGS,TUV
모델 번호: 6 3-4 " IADC517
결제 및 배송 조건
포장 세부 사항: 표준 수출 포장
배달 시간: 5-7 근무일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 한 달에 2000 조각
제품 설명
High strength Tricone Rock Bit 6 1-2'' For Soft To Hard Formation
1. Description:

Tricone drill bits has been in continuous use in the water well,oil & gas industry, and is still being improved!

We have a wide selection of tricone bits - there’s a bit for every application.our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.

Tricone bits cut faster and last longer in all ground conditions and especially varying ground conditions.Higher penetration rates and Higher quality.

The 6 1-2 '' blast hole bits are designed for drilling soft to medium hard formations, with rock compressive.Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.

2. Applications:

Wry soft formation with low compressive strength and high drillability, such as:

shale, clay, sandstone, gravel, etc.

3. Specifications:
Bit size API thread recommended torque
in mm in KN.M
6 152.4 3 1/2 9. 5-12.2
6 1/8 155.6 3 1/2 9. 5-12.2
6 1/4 158.8 3 1/2 9. 5-12.2
6 1/2 165.1 3 1/2 9. 5-12.2
6 5/8 168.3 3 1/2 9. 5-12.2
6 3/4 171.5 3 1/2 9. 5-12.2
7 1/2 190.5 4 1/2 16. 3〜21. 7
7 5/8 193.7 4 1/2 16. 3〜21. 7
7 7/8 200 4 1/2 16. 3〜21. 7
8 3/8 212.7 4 1/2 16. 3〜21. 7
8 1/2 215.9 4 1/2 16. 3〜21. 7
8 5/8 219.1 4 1/2 16. 3〜21. 7
8 3/4 222.3 4 1/2 16. 3〜21. 7
9 1/2 241.3 6 5/8 38〜43. 4
9 5/8 244.5 6 5/8 38〜43. 4
9 7/8 250.8 6 5/8 38〜43. 4
10 1/2 266.7 6 5/8 38〜43. 4
10 5/8 269.9 6 5/8 38〜43. 4
11 279.4 6 5/8 38〜43. 4
115/8 295.3 6 5/8 38〜43. 4
12 304.8 6 5/8 38〜43. 4
12 1/4 311.2 6 5/8 38〜43. 4
12 5/16 312.7 6 5/8 38〜43. 4
12 3/8 314.3 6 5/8 38〜43. 4
12 7/16 315.9 6 5/8 38〜43. 4
12 5/8 320.7 6 5/8 38〜43. 4
13 1/8 333.4 6 5/8 38〜43. 4
13 1/2 342.9 6 5/8 38〜43. 4
13 5/8 346.1 6 5/8 38〜43. 4
13 3/4 349.3 6 5/8 38〜43. 4
4. Packaging & Shipping:

Packaging for tricone drill bit for water well drilling is in carton box.
Samples will be shipped by express, batch products will be shipped by sea;
3-5 days for samples, batch products are depend on the order quantity.

5. Our advantage:
  • We have CE,SGS certificate, we guarantee product quality, delivery time and payment in safe; button tooth used tricone bits
  • 20+ years manufacturing experience of drill bits;
  • Powerful technology support and mature manufacturing experience;
  • Strict quality control before delivering;
  • 24 hours online service;
  • We can provide customized products with special requirements.

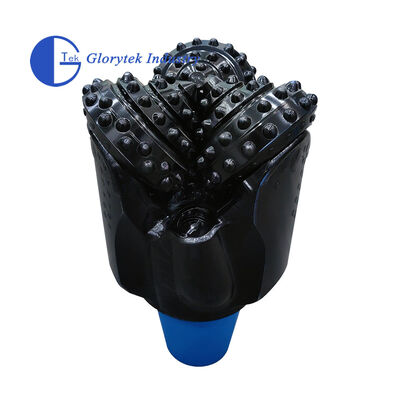

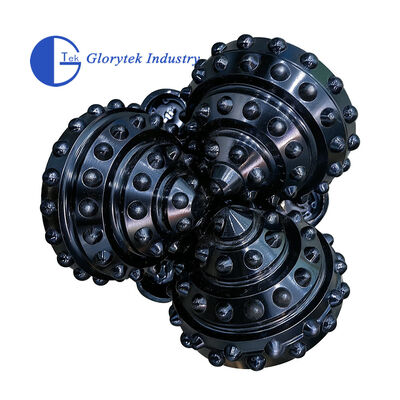

The Photo of products

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 0High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 1

Company Profile

High Quality 6 1/2" Tungsten Carbide Insert IADC 837 Tricone Roller Drill Bit 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
