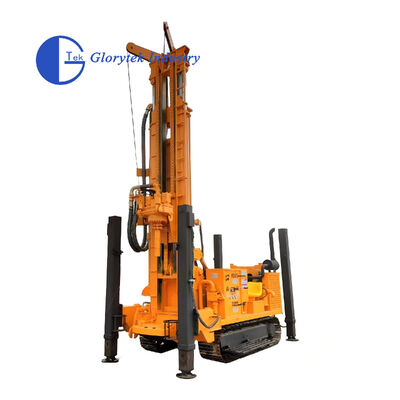

800M Steel Crawler Type Water Well Drill/Drilling Rig
Description:
GL-800S crawler water well drill rig machine is widely used in geothermal drilling, industrial drilling and agricultural drilling fileds.
It is equipped with steel crawler chassis, which is easily for crossing.
The diesel engine power is 191kw, big drilling capacity.
This model can perfectly used for big hole casing drilling, like drilling with 508mm casing tube.
Tehnical Parameter:
| Max drilling depth | M | 800 |
| Drilling diameter | mm | 105-500 |
| Air pressure | Mpa | 1.2-3.5 |
| Rod length | m | 3-6 |
| Rod diameter | mm | 89-102-114-127-140 |
| Main shaft pressure | T | 8 |
| Lifting force | T | 30-35 |
| Total Rotating stroke | M | 6.8 |
| Max Rotating torque | Nm | 17000 |
| Max Rotating speed | r/min | 100 |
| Winch liftng force | T | big winch 2.5 |
| small winch 1.0 | ||
| Jacks stroke | m | 1.75 |
| Moving speed | km/h | 2.5 |
| Climbing ability | slope | 21° |
| Weight of the rig | T | 13.8 |
| The engine | Weichai176KW/Yuchai 191KW | |
| The main pump | K3V180 Plunger pump | |
| Dimension | mm | 5700-5100x2000*2800 |
| Working condition | Loose layer and bedrock | |
| Drilling method | Hydraulic rotation and propulsion, DTH hammer or mud drilling | |
Features:
GL-800S deep how crawler water well drill rig can drill 800m deep. The hole dia. is around 500mm.
It work with 1.2-3.5Mpa air compressor.
The lifting force is max.35ton
The diesel engine could be Weichai176kw or Yuchai 191kw.
It can drill for loose layer and bedrock.
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
Warranty:
For drill rig main parts, if proved because of quality issue, we can replace them free of charge within one year after shipping.
