GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling

1
MOQ
negotiable
가격
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
이름: 시추공을 위한 GL600S 크롤러 유형 DTH 우물 드릴 장비 기계
예어: 시추공용 드릴 장비 기계
깊이: 600m
시추 직경: 105-500mm
기압: 1.05-4.5Mpa
막대 길이: 3m,6m
드릴 로드 디아.: 89-102-114mm
리프팅 력: 35T
엔진: 176 kw
차원: 5800*2200*2550mm
강조하다:

steel crawler water well drill

,

DTH hammer drilling rig

,

mud pump well drilling rig
기본 정보
원래 장소: 중국
브랜드 이름: Glorytek
인증: CE
모델 번호: GL600S
결제 및 배송 조건
포장 세부 사항: 표준 수출 포장
배달 시간: 20 일
지불 조건: T/T, L/C, Western Union, MoneyGram, D/P, D/A.
공급 능력: 40은 / 달에서 설정합니다
제품 설명
GL600S Crawler Type Water Well Drill/Drilling Rig for 600m Depth and 105-500mm Diameter
GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole
The GL600S crawler water well drill rig machine is designed for geothermal, industrial, and agricultural drilling applications. Featuring a durable steel crawler chassis for easy mobility and a powerful 176kw diesel engine, this rig delivers exceptional drilling capacity.
Technical Specifications
Parameter Value
Max Drilling Depth (m) 600
Drilling Diameter (mm) 105-500
Air Pressure (Mpa) 1.05-4.5
Air consumption 16-60m³/min
Rod Length (m) 3.0 / 6.0
Rod Diameter (mm) 89-102-114
Main Shaft Pressure (T) 14
Lifting Force (T) 35
Fast lifting speed 24m/min
Rotary Torque (N.m) 13000
Rotary Speed (r/min) 30/170
Winch Lifting Force (T) 5
High leg stroke (M) 1.5-1.65
Moving Speed (km/h) 3.5
Uphill Angle (°) 21
Weight of the Rig (T) 13
Engine 191KW
Overall Dimensions (MM) 5800*2200*2550
Working Condition loose layer or bedding rock
Drilling Method Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling

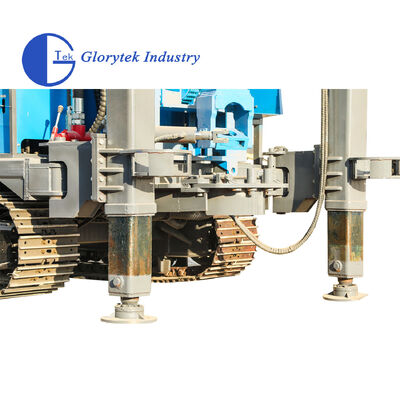

GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling 0

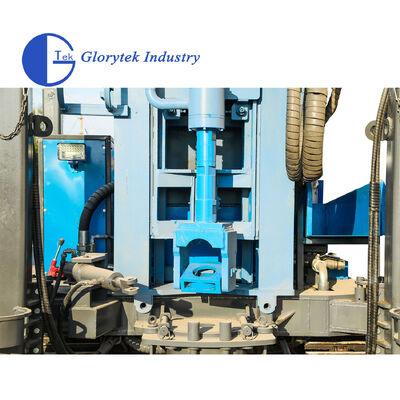

GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling 1
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling 2
Customer Visiting
GL600S Steel Crawler Type Water Well Drill/Drilling Rig with DTH Hammer or Mud Pump for Drilling 3
Company Profile
About Glorytek Industry
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to clients' requirements. As an important member of "Sundrill Corporation," our 250,000 square meter facility includes machining machinery, CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of equipment and 600 employees, our products have been exported to more than 60 countries worldwide.
Warranty Information
For drill rig main parts, if quality issues are confirmed, we provide free replacement within one year after shipping.
