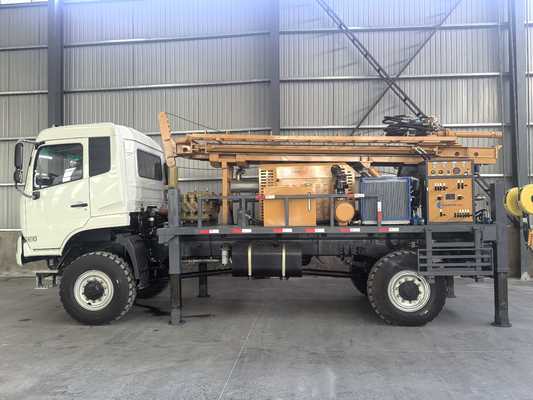

GL500T drill rig, with its core capability of drilling holes up to 500 meters deep, features an adjustable aperture system from 105 to 350 mm, enabling penetration of hard rock formations through high torque output of 13,000 to 15,000 N·m. Its 194 kW power unit and 6,600 mm feed stroke work in tandem, ensuring continuous and efficient drilling in complex geological conditions. The overall stability of the rig reaches 16,800 kg.
As a versatile deep well drilling solution, the GL500T is suitable for:
Groundwater resource development (such as deep water well drilling in arid areas);
New energy projects (geothermal wells and ground-source heat pump borehole construction);
Large-scale infrastructure projects (bridge pile foundations and high-rise building foundation exploration).
Formation Adaptability: The combination of stepless speed regulation (75-150 rpm) and 4.5 MPa operating pressure allows for diverse formations, from loose sedimentary rocks to dense igneous rocks.
Engineering Economy: The modular drill pipe design (3-6 meters) reduces wear, and the 28-ton lifting capacity reduces the cost of auxiliary equipment.
Intelligent Operation: The long-stroke feed system and hydraulic protection sleeve design enhance operational safety and ease of maintenance.
| Model | GL500T |
| Borehole Diameter | 105-350mm |
| Drilling Depth | 500m |
| Working air pressure | 1.05-4.5MPa |
| Air Consumption | 16-60m²/min |
| Lifting Capacity | 28T |
| Feeding Stroke | 6600mm |
| Rotary Speed | 75-150rpm |
| Rotary Torque | 13000-15000N.M |
| Engine Power | 194kW |
| Mud Pump | BW600/5 |
| Total Weight | 16800kg |
| Drill Pipe Length | 3m-6m |
| Dimensions | 8300x2500x3150mm |
Optimized Structure
The modular design facilitates maintenance, and key components (such as hydraulic hoses) feature thickened protective sleeves for extended service life. A 6,600mm feed stroke reduces frequent drill rod adjustments and improves operational continuity.
Intelligent Operation
Steplessly adjustable rotational speed (75-150 rpm) adapts to varying formation requirements. Some similar models are equipped with a PLC control system and real-time monitoring platform. Predictable component life
Energy-Saving and High-Efficiency
With an operating air pressure of 1.05-4.5 MPa, energy consumption is superior to conventional models, aligning with energy conservation and emission reduction trends.
28-ton lifting capacity supports heavy drill pipe operations, reducing auxiliary equipment investment.
Widely Applicable Scenarios
Suitable for deepwater wells, geothermal wells, mining exploration, and large-scale infrastructure projects (such as bridge pile foundations). The multi-section drill pipe design (3-6 m) supports segmented hole expansion, reducing equipment wear and tear.
User reviews of similar high-end drill rigs indicate that high-torque models offer significant efficiency improvements in hard rock formations and lower maintenance costs.
We provide technical support and service for Water Well Drill Rig. Our service includes:
Packaging and Shipping for Water Well Drill Rig:
We will ensure the packaging materials are secure and fit for a long-distance shipment. The Water Well Drill Rig will be packed in containers.
It is normally load with 40FR container.
