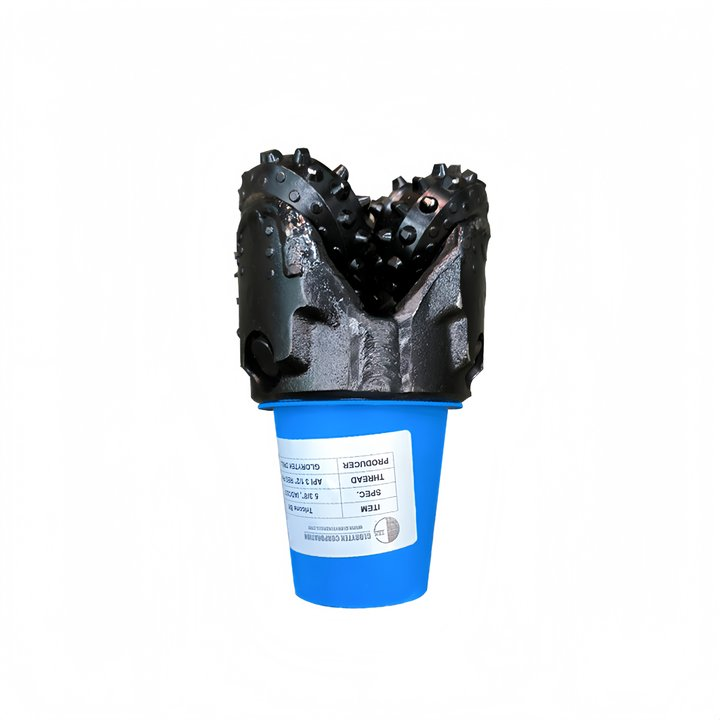

Size: 5 3/8 inches (about 136.5mm), IADC537, designed for hard to extremely hard abrasive formations (such as dolomite, quartzite, siltstone)
| Diameter: | 5 3/8" |
| IADC CODE | 537 |
| Cone type: | Tungsten carbide teeth |
| Bearing type: | Journal bearings |
| Seal type: | rubber-sealed |
| Thread connection: | API 2 3/8 regular pin |
Efficient Drilling: The ROP (Rate of Penetration) can reach 8-12 meters per hour in mudstone-sandstone interbeds, a 25% improvement over similar products.
Cost Control: The bearing life reaches 200-300 hours, reducing tripping times and lowering overall drilling costs by 15%-20%.
Cutting Structure
Tooth Type:
Tungsten Carbide (TCI) inserts with weld overlay technology for enhanced wear resistance, suitable for high WOB and high-speed rotation.
Specially designed tapered spherical inserts for efficient hard rock crushing.
Gage Guard Design: Tip and back gauge guards ensure a regular wellbore and extend bit life.
Bearing and Sealing System
Bearing Structure:
High-precision plain bearings with dual thrust faces and silver-plated anti-friction alloy for enhanced anti-seizure resistance.
Ball-locking cones enhance drilling stability.
Seal Technology:
Rubber seals (HNBR O-rings) or metal seals, resistant to high temperatures and pressures. Compensation system maintains lubrication reliability.
Performance Features
Applicable Formations:Hard to extremely hard and abrasive formations, such as oil, gas, geothermal, and water wells.
Speed and WOB: Suitable for 50-120 rpm, capable of withstanding high WOB operations.
Nozzle Design: Three standard nozzles optimize mud circulation and cuttings removal.
Packing: wooden box.
Delivery: Normally 10 days after down payment.
Shipping method: by express, by air or by sea
Glorytek Industry (Beijing) Co., Ltd. is a professional manufacturer and supplier of drilling equipment and drilling tools with more than 20 years experience. We are supported and assisted by rich experienced R & D team and engineers with strong technical force,skilled production workers and high-quality sales team, that enable us to complete all the high-quality products and services on time as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.
Our main products include: water well drilling rigs, blasthole drilling rigs, core sample drilling rigs for surface drilling and underground drilling, foundation piling rigs, horizontal directional drilling rigs, air compressor, oil and gas drilling equipment like mud pump, downhole motor, drilling tools such as drill pipes, tricone bit, pdc bit, dth hammer, hammer bit, overburden casing system, button bit, shank adaptor, reamers, wireline coring tools etc. All products are meeting international standards, with stable quality and superior cost performance.
Glorytekdrill exports products into over 60 countries, we have CE certificate, SGS certificate, the quality can be guaranteed. Our high-quality products and perfect service have won favourable comments from different customers all over the world.
Glorytekdrill will establish a long-term relationship with customers based on the concept of quality first, customer first, integrity-based, and win-win cooperation.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
